description

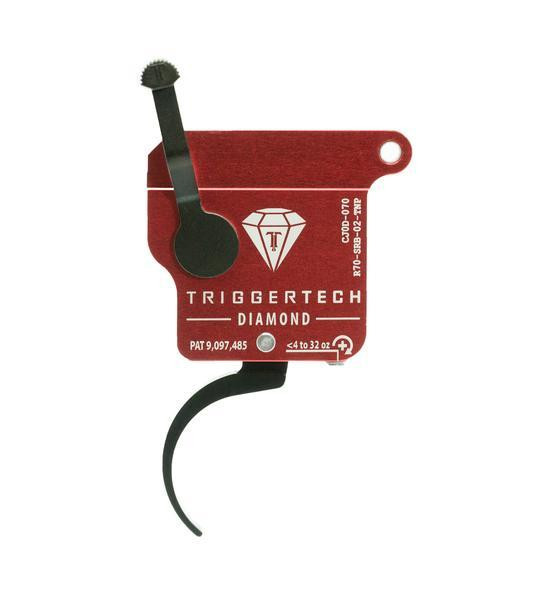

The TriggerTech Diamond Rem 700 Trigger was designed to meet the requirements of leading competitive shooters with the help of the K&M Shooting Team and several leading R700 Clone Action Manufacturers. The Diamond features a pull weight range of less than 4 oz to 32 oz, our new Variable Rate Adjustment Technology and the new Pro Curved trigger lever. Our shooters have described it is the most consistent and crisp breaking trigger they have ever felt. After feeling the crisp break on the Diamond you will immediately become aware of the creep that exists in all other triggers.
Intended Use
Precision Rifle, benchrest, competition, precision shooting, military, law enforcement, long range hunting, F Class, rugged hunting, harsh environments operations, target shooting, ultra long range, varmint hunting.
Trigger Control Details
Trigger Lever Type: Traditional Curved, Flat Straight and Pro Curved
Trigger Action: Single Stage
FRT: Yes
TKR Technology: Yes
CLKR Technology: Yes
Overtravel: Sub .010"
Pull Weight: <4 oz - 32 oz
Bolt Release: Without
Safety: With (removable)
Hand: Right & Left (+ $20)
Warranty: Product lifetime
Weapon Platform: Remington 700 Clone Actions
Material Details
Housing: 7075 Aluminum (anodized)
Key Components: 440C Stainless Steel
Full Description
The first Rem 700 Diamond Trigger was shown at the 2017 NRA Show. Since then TriggerTech has worked with the K&M Shooting Team and several leading R700 Clone action manufacturers the refine the product. The Rem 700 Diamond is truly zero creep and is the most consistent and crisp breaking trigger you will ever use. The diamond will make you aware of the creep that exists in other triggers. It features new variable rate adjustment technology that enables quick and confident adjustment from <4oz – 32oz with TriggerTech’s patented CLKR Technology™. The adjustment feature utilizes externally accessible set screw and the adjustment range begins at ~0.2 oz/click from <4 oz to ~9 oz and the changes to ~1 oz click from ~9 oz to 32 oz. Due to the exceptionally crisp break, most shooters report the pull weights feeling significantly lighter than a friction based trigger of the same measured weight. Five of the critical Diamond components are assembled as matched set to enable a true zero-creep break, extremely short overtravel and offers outstanding reliability, even in the harshest environments. Frictionless Release Technology™, along with hardened 440C stainless steel internal components ensure corrosion resistance and an extended service life. As Frictionless Release Technology™ does not rely on coating, polishing or lubricating the key engagement surfaces, trigger pulls will be more consistent from shot to shot and after thousands of shots than you ever thought possible.
All pull weights and measurements are approximate. ***Pull weights of TriggerTech Triggers are directly impacted by firing pin spring weight. Overweight firing pin springs may cause pulls weights to vary above the advertised range***
Reviews
-
Triggertech
Trigger is outstanding! But more importantly, Aaron jumped through hula hoops to get the trigger too me. Thank you
-
Trigger Tech 700 Diamond trigger
Easy install,fit perfectly very consistent pull each time
-
Diamond Trigger
Super crisp and no creep. Love dealing with Aaron. Great prices and service. Aarons stands behind what he sells.
-
Very Nice!
This trigger is awesome. The pull weight will go way lower than I want or need. I love the flat trigger profile and how it feels. Thanks A&J for the fast shipment! This company has been great to order from, and they support the shooting community, which keeps me coming back to buy more stuff! Thanks, guys!
-
Great trigger
This is a great trigger. Installed on a bergara b14r trainer for nrl22.
-
Best trigger there is.
TriggerTech Triggers are the best in my book. I have the Single Stage Diamond Pro Curve. Factory pull weight was 2lb 2oz. It was clean and crisp. I adjusted it down to 1lb 4oz and WOW is it nice. It allows you to brake that shot as soon as you need it and not feel like your pulling a rope while doing so. It does cost more than a Timney, but worth every penny. Don’t second guess the purchase it’s worth it.
-
Great Upgrade
I bought this to go in my B14R Bergara 22 LR. I t was a simple 2 pin install like normal. It was factory set at just over 2lb average on 10 pulls. I adjusted it down to 18oz average on 10 pulls. I used a Lyman Digital gauge to verify. I am very satisfied and in love with this trigger. It feels way better than Timney 510 I have. in another rifle.
