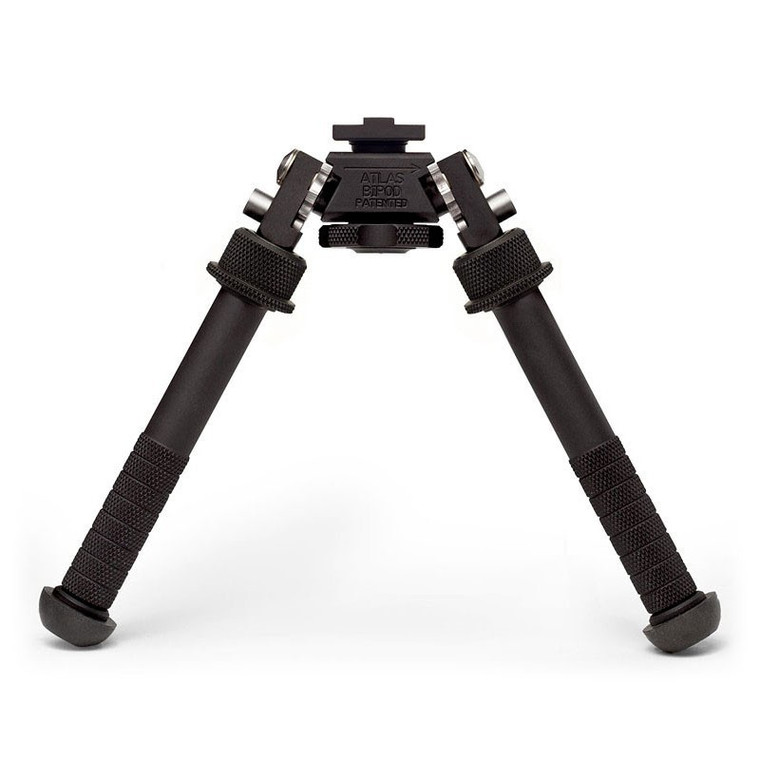

BT10-NC V8 Atlas Bipod

The BT10-NC V8 Atlas Bipod "No Clamp" model has a two hole pattern of 1.100” with the holes being 10/32 threads. It requires any 17S size lever style mount to include the ADM-170-S, ARMS 17S, TRAMP from Badger Ordnance, LT271 or any ARCA dovetail mount with the same hole pattern. The BT10-NC will also mount directly to our BT19 AI Spigot or BT70 M-LOK® Adapter.

It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated stainless steel components. Available in black only.

• Height Range: 5–9" (6.34” at 90°)
• Preloaded Pan: 30 degrees
• Preloaded Cant: 30 degrees
• Position Button 0.36" diameter
• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Weight: 10.8 ounces approx.
• Footprint: 8–11"
